Even though the Internet is still a young technology, it's hard to imagine life without it now. Every year, engineers create more devices to integrate with the Internet. This network of networks crisscrosses the globe and even extends into space. But what makes it work?
- Introduction
- Where to Begin? Internet Addresses
- Protocol Stacks and Packets
- Networking Infrastructure
- Internet Infrastructure
- The Internet Routing Hierarchy
- Domain Names and Address Resolution
- Internet Protocols Revisited
- Application Protocols: HTTP and the World Wide Web
- Application Protocols: SMTP and Electronic Mail
- Transmission Control Protocol
- Internet Protocol
- Wrap Up
Introduction
This whitepaper explains the underlying infrastructure and technologies that make the Internet work. It does not go into great depth but covers enough of each area to give a basic understanding of the concepts involved. For your understanding, I have shared one video please watch for more clarity.
Where to Begin? Internet Addresses

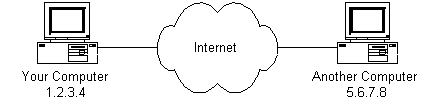

If you connect to the Internet through an Internet Service Provider (ISP), you are usually assigned a temporary IP address for the duration of your dial-in session. If you connect to the Internet from a local area network (LAN) your computer might have a permanent IP address or it might obtain a temporary one from a DHCP (Dynamic Host Configuration Protocol) server. In any case, if you are connected to the Internet, your computer has a unique IP address.
If you're using Microsoft Windows or a flavor of Unix and have a connection to the Internet, there is a handy program to see if a computer on the Internet is alive. It's called ping, probably after the sound made by older submarine sonar systems.1 If you are using Windows, start a command prompt window. If you're using a flavor of Unix, get to a command prompt. Type ping www.yahoo.com. The ping program will send a 'ping' (actually an ICMP (Internet Control Message Protocol) echo request message) to the named computer. The pinged computer will respond with a reply. The ping program will count the time expired until the reply comes back (if it does). Also, if you enter a domain name (i.e. www.yahoo.com) instead of an IP address, ping will resolve the domain name and display the computer's IP address. More on domain names and address resolution later.
Protocol Stacks and Packets
Protocol Layer | Comments |
---|---|
Application Protocols Layer | Protocols specific to applications such as WWW, e-mail, FTP, etc. |
Transmission Control Protocol Layer | TCP directs packets to a specific application on a computer using a port number. |
Internet Protocol Layer | IP directs packets to a specific computer using an IP address. |
Hardware Layer | Converts binary packet data to network signals and back. (E.g. ethernet network card, modem for phone lines, etc.) |
- The message would start at the top of the protocol stack on your computer and work it's way downward.
- If the message to be sent is long, each stack layer that the message passes through may break the message up into smaller chunks of data. This is because data sent over the Internet (and most computer networks) are sent in manageable chunks. On the Internet, these chunks of data are known as packets.
- The packets would go through the Application Layer and continue to the TCP layer. Each packet is assigned a port number. Ports will be explained later, but suffice to say that many programs may be using the TCP/IP stack and sending messages. We need to know which program on the destination computer needs to receive the message because it will be listening on a specific port.
- After going through the TCP layer, the packets proceed to the IP layer. This is where each packet receives it's destination address, 5.6.7.8.
- Now that our message packets have a port number and an IP address, they are ready to be sent over the Internet. The hardware layer takes care of turning our packets containing the alphabetic text of our message into electronic signals and transmitting them over the phone line.
- On the other end of the phone line your ISP has a direct connection to the Internet. The ISPs router examines the destination address in each packet and determines where to send it. Often, the packet's next stop is another router. More on routers and Internet infrastructure later.
- Eventually, the packets reach computer 5.6.7.8. Here, the packets start at the bottom of the destination computer's TCP/IP stack and work upwards.
- As the packets go upwards through the stack, all routing data that the sending computer's stack added (such as IP address and port number) is stripped from the packets.
- When the data reaches the top of the stack, the packets have been re-assembled into their original form, "Hello computer 5.6.7.8!"
