Friday, 22 June 2018

LTE: Attach Call flow


Source: https://www.eventhelix.com/lte/attach/lte-attach.pdf

UL-SCH: UE -> eNodeB RRC Connection Request
  • The UE has received the Random Access Response based on the RA-RNTI.
  • The Random Access Response assigns a C-RNTI and resources for transmission of the RRC Connection Request
  • The message identifies the UE with the CRNTI
  • The message contains the UE-Identity

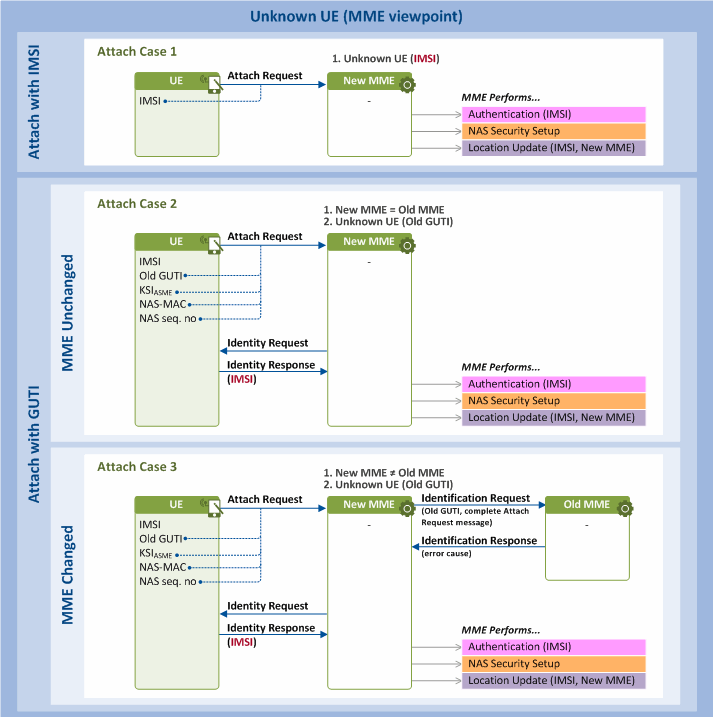

    • IMSI is sent in the message if this is the first attach to the network
    • If the terminal had attached previously, the S-TMSI is included in the message
    • STMSI = MMEC + M-TMSI
    • ue-Identity (Initial UE-Identity): This IE is included to facilitate contention resolution by lower layers. It can be either S-TMSI (40-bits) or a bit string of randomValue (40-bits). If the upper layers provide S-TMSI, then S-TMSI is used as the ue-Identity; else a random value in the range of 0 … 240-1 is drawn and used as the ue-Identity. Upper layers provide the S-TMSI if the UE is registered in the TA of the current cell

  • establishmentCause:The main cause values and the corresponding NAS procedure whichtriggers the RRC connection establishment are presented below:
    • emergency: This corresponds to NAS Procedure “MO-CS fallback Emergency call”
    • mt-Access: Corresponding NAS procedures are “Service Request” (paging response for PS domain) or “Extended Service Request”(MT-CS fallback)
    • mo-Signalling: Corresponding NAS procedures are Attach, Detach, and TAU
    • mo-Data: Corresponding NAS Procedures are “Service Request” and “Extended Service Request”
  • Note that th eNodeB may optionally send a contention resolution message on receipt of this message
DL-SCH: UE <- eNodeB     RRC Connection Setup

  • The message identifies the signaling radio bearer (SRB)
  • RLC Uplink Configuration
    • Timer for status report polling
    • Number of retransmissions of buffer status report
    • Control plane retransmission limit
  • RLC Downlink Configuration
    • The maximum time to wait for packet reordering
  • UL-SCH configuration
    • Maximum number of Hybrid ARQ transmissions
    • Periodic and regular buffer status report (BSR) timer
  • Power Headroom Report (PHR) Configuration
    • Periodicity of the PHR •
    • Downlink Path Loss more than the specified value also triggers PHR (provided the Prohibit PHR timer has expired)
  • Uplink Power Control Parameters
    •  P0-UE-PUSCH and P0-UE-PCCH values are used to determine the nominal power of the uplink transmissions
    • “pSRS Offset” determines the uplink Sounding Reference Signal power
    • Delta MCS (choose between Ks = 0 and Ks = 1.25)
    • Filter Coefficient value for RSRP (Reference Signal Received Power) measurement used to calculate path loss •
    • Reference: 36.213 clause 5.1.1.1







Source https://www.netmanias.com/en/?m=view&id=techdocs&no=10440
